Product Parameters

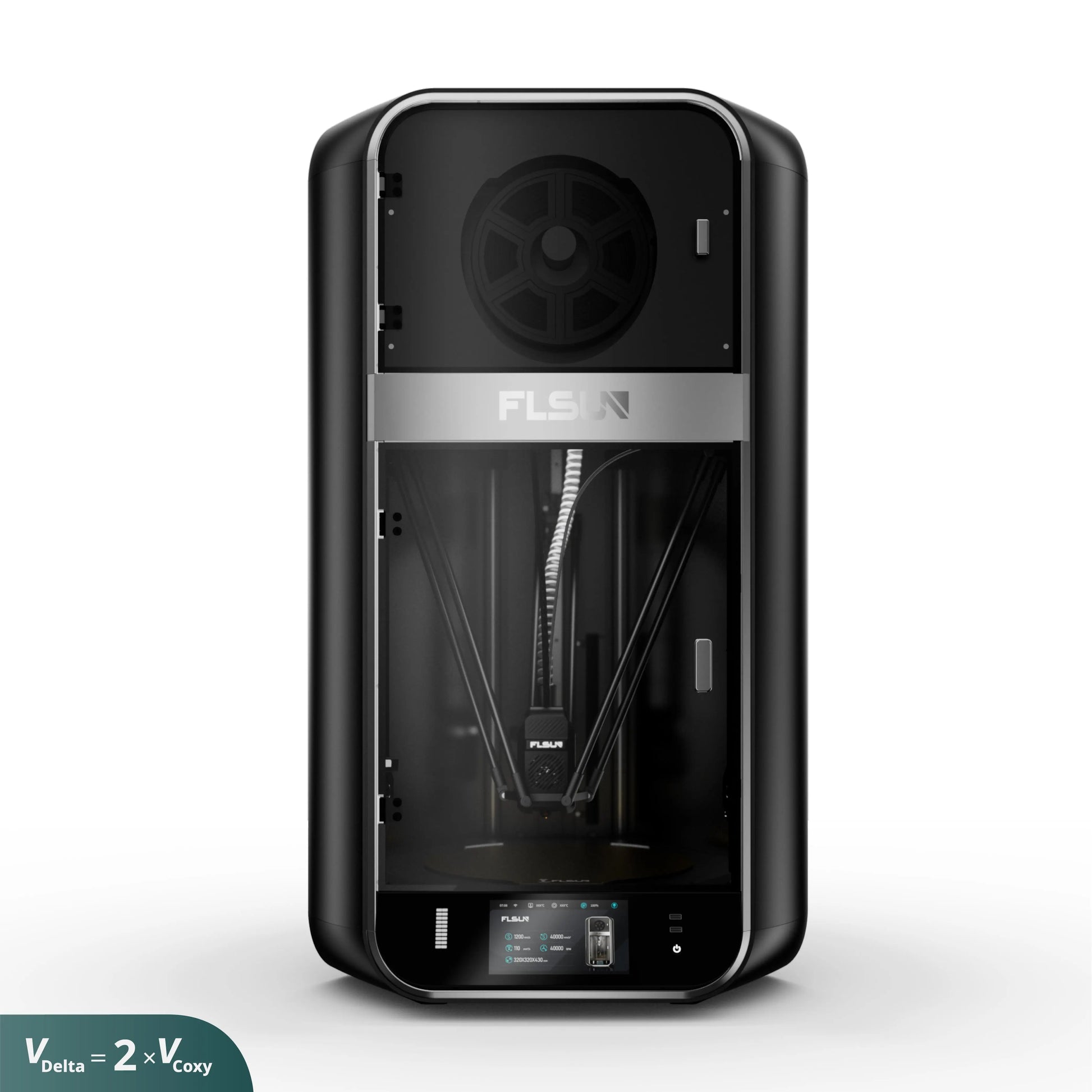

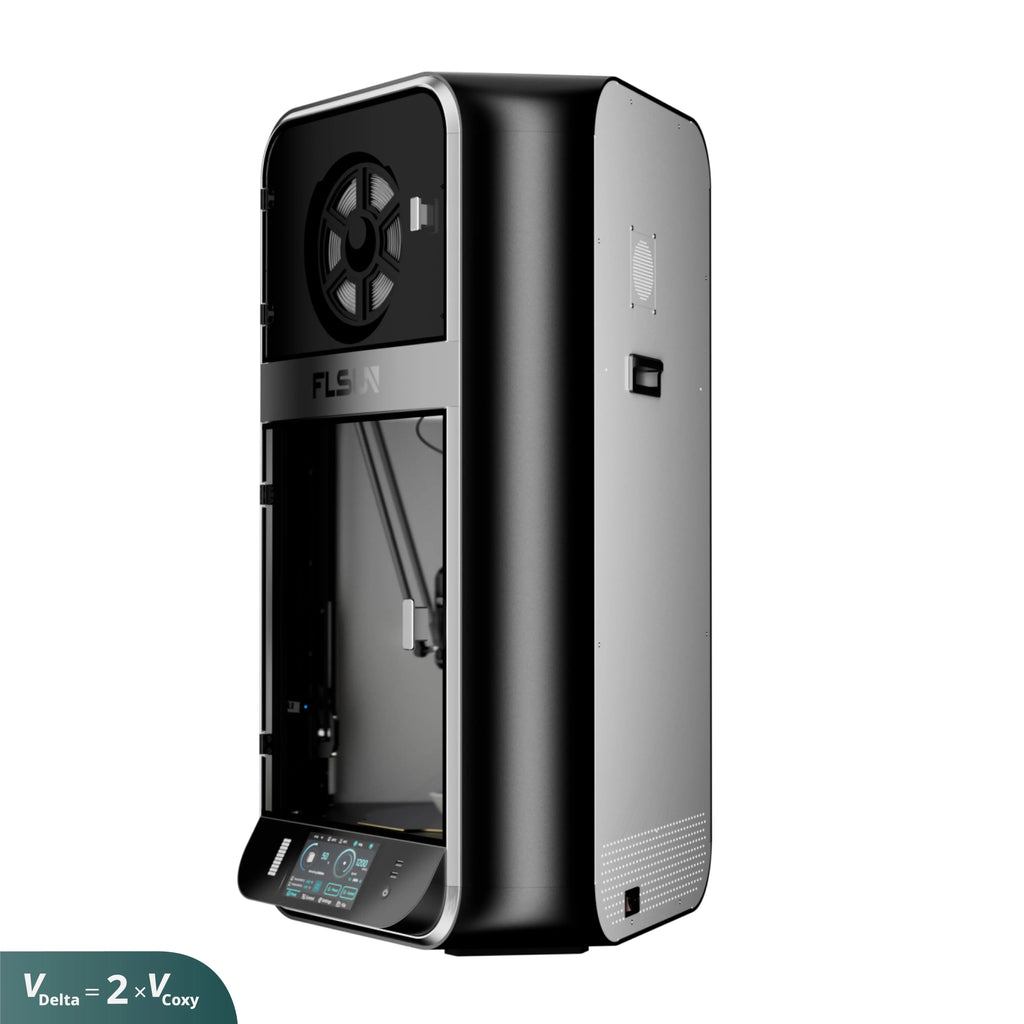

PRODUCT | FLSUN S1 |
Printing Technology | Fused Deposition Modeling (FDM) |
Printing Accuracy | 0.1mm |
Recommended Layer Height | 0.1-0.35mm |
Build Volume | Φ320 * 430mm³ |
Frame | Full Metal |
Product Dimensions | 550*595*1030mm |
Package Dimensions | 640*680*1120mm |
Net Weight | 41kg |
Gross Weight | 51kg |
Extruder | Dual-Gear Direct Drive Extruder |
Nozzle | Hardened Steel |
Nozzle MAX Temp | 350℃ |
Nozzle Diameter | 0.4mm |
Filament Diameter | 1.75mm |
Motor Types | 36V Closed-loop motor |
Build Plate | Textured PEI Print Plate |
Bed MAX Temp | 120℃ |
Smart Zone Heating | Inner Circle Φ220mm、Outer Ring 220-320mm |
Supported | PLA、 PETG、 TPU、 ABS、 ASA、 PVA、PET、PA、 PC、PLA-CF etc. |
Drying | Separate Heating elements,Desiccant |

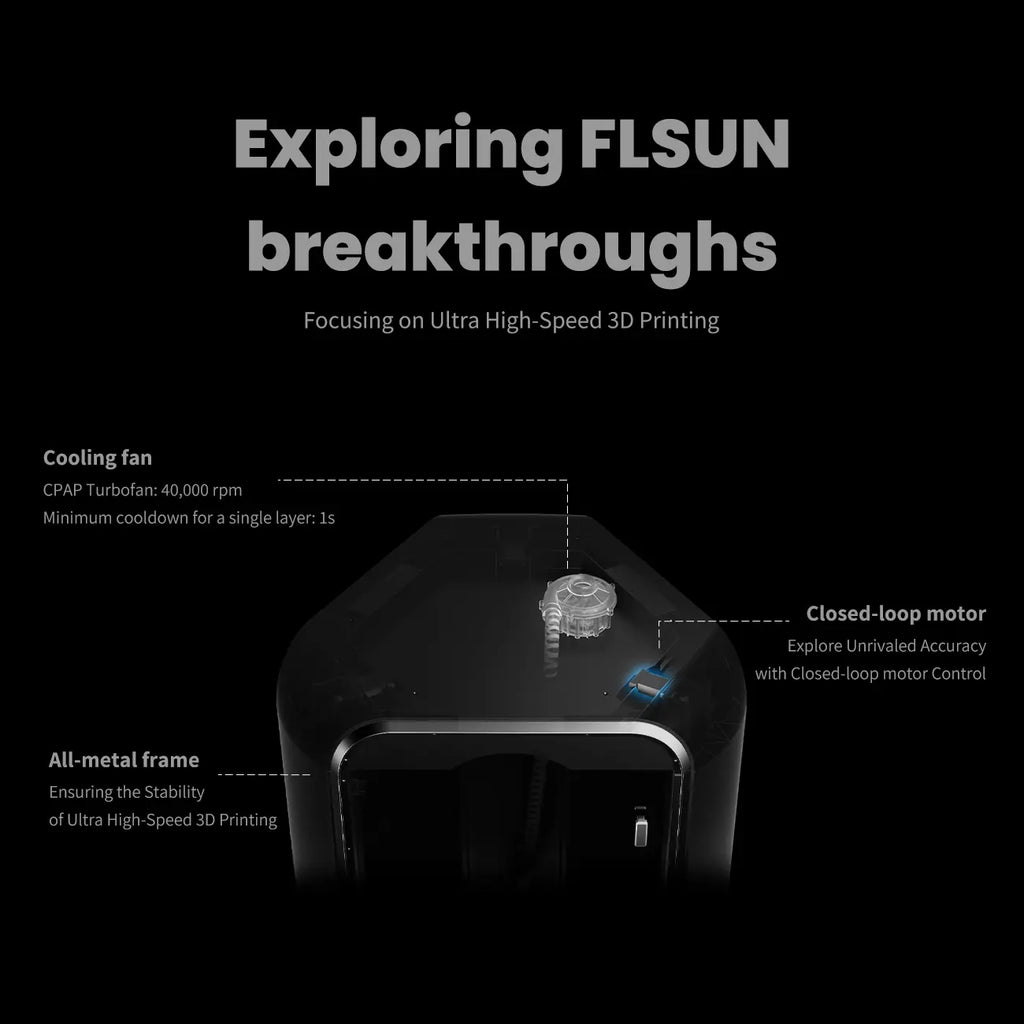

Fan | CPAP turbofan 40000 rpm |
MAX Speed | 1200mm/s |
MAX Acceleration | 40000mm/s2 |
Max Volumetric Flow Rate | 110mm3/s FLSUN PLA-HS (Measured by Gravimetric Method: 79.37mm³/s) |
Input | 110-240V,50/60HZ |
Power | 1300W@220V,600W@110V |
Display | Full-Integration Touchscreen |
Storage | 16GB EMMC、32GB USB Flash |
Control interface | Touchscreen, PC Interface |
CPU | Quad-Core ARM A7 1.5 GHz |
NPU | 2 tops |
Pixels | 1920 × 1080 pixels |
Real-time Monitoring | Support |
Time-lapse Photography | Support |
Remaining Filament Weight | Dynamic Monitoring |

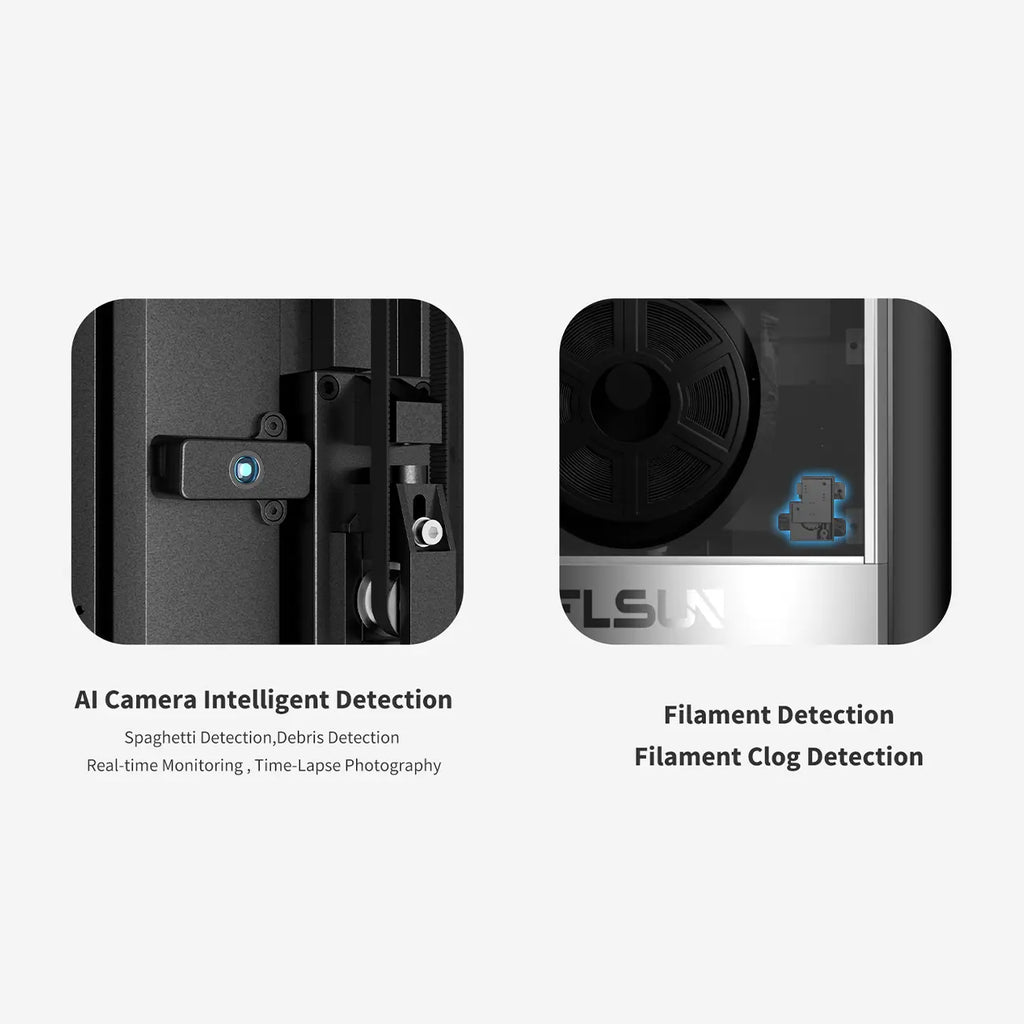

Filament Detection | Support |
Filament Clog Detection | Support |
Vibration Compensation | Support |
Auto-Leveling | Support |
First Layer Detection | Support |
Accuracy Calibration | Support |
Flow Calibration | Support |
Debris Detection | Support |
Spaghetti Detection | Support |
Screen Auto Sleep | Support |
Printer Auto Power Off | Support |
Smart Zone Heating | Support |
Power Off Resume Print Module | Support(Z lift, protect model) |
Air Filter | Composite filter: HEPA + Activated Carbon |
Upgrade Method | OTA |
Slicer | Flsun Slicer、Other Slicers |
Supported OS | MacOS、 Windows |
File Format | STL、OBJ、AMF、3MF |
